RAZ-AT
Mobile Shower Commode Chair
RAZ Mobile Shower Commode Chairs — Designed and manufactured to the highest standards of the discerning healthcare professional.

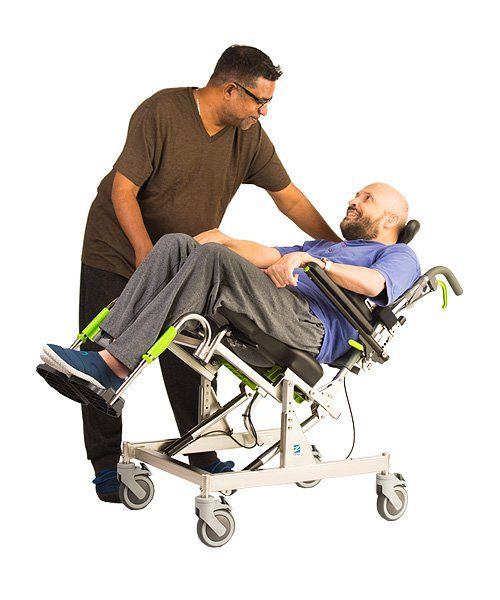

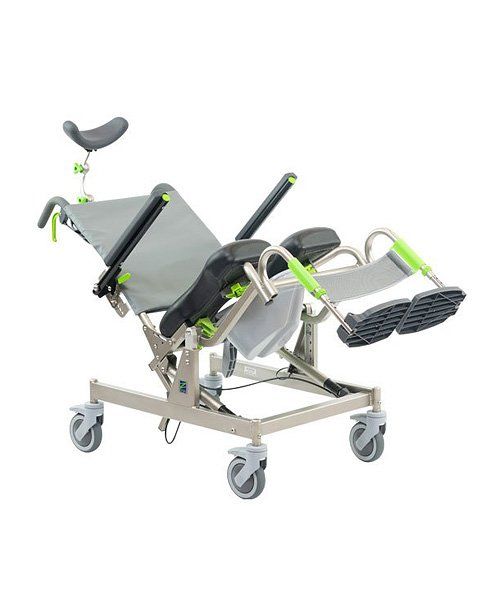

The RAZ-AT (Attendant Tilt) mobile shower commode chair tilts up to 40° to provide extra pressure reduction and comfort. The unique frame design utilizes locking gas springs that help lift the seat to an upright position, making the RAZ-AT one of the easiest tilting mobile shower chairs to operate.
The
RAZ-AT mobile shower commode chair comes standard with the Ischial & Pelvic Alignment System (IPAS), 4” of height adjustment, adjustable-tension back upholstery, molded headrest and fixture, 5” dual-locking casters, flip-up padded armrests, and a commode pan. The easy-to-clean, polished stainless steel frame fits over most toilets and is designed for easy side and front access by the user or attendant.
City skyline
RAZ-AP/SP Standard Features
Tilt Function
- seat frame tilts for extra pressure reduction and comfort
- locking pneumatic springs provide infinite adjustment up to 40°
- pressurized springs also help lift seat frame to an upright position
- conveniently located tilt triggers provide smooth tilt control
Moulded Seat
- contoured for pressure reduction and pelvic stability
- soft integral-skin foam for comfort and durability
- available with open or bridged front
- available sizes: 18″Wx16″D, 18″Wx19″D

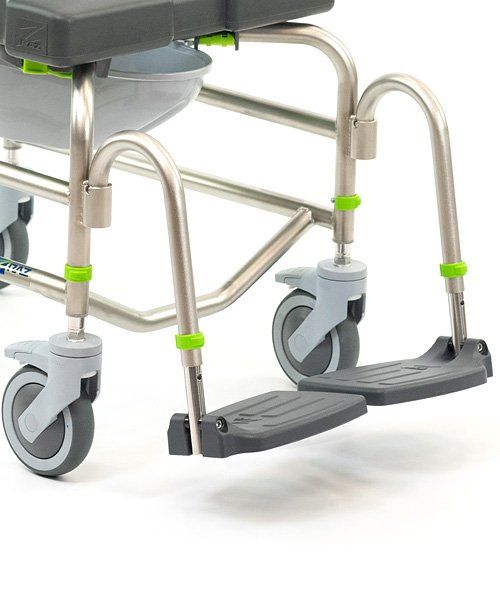

Adjustable Footrests
- removable for transfers and cleaning
- swing in and out easily
- flip-up footplate
- adjust for leg length without tools
- available in regular length 16″-20½” and extended length 18″-22½”
Ischial Pelvic Alignment System
- provides 2” of fore/aft adjustment so the seat can be aligned with the pelvis
- allows centering of the aperture (opening) around the users’ ITs
- seat locks in place for transfers
- removes easily for cleaning
- optional spacers for anterior or posterior seat angle adjustment [Z491]

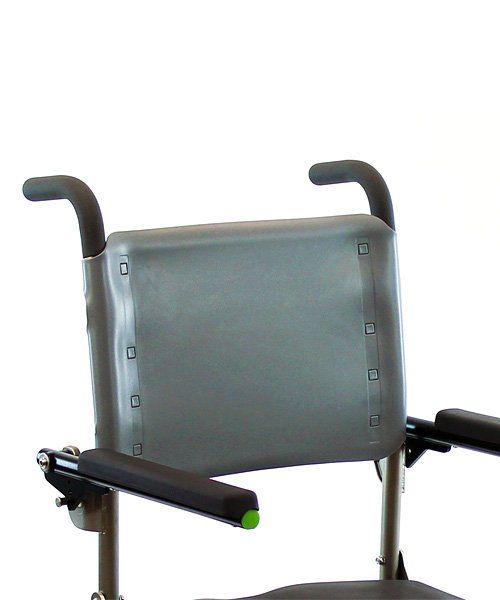

Fixed Back
- molded, flexible vinyl upholstery – suitable for infection control environments
- includes flip-up, angle-adjustable arms
- 18” back height
- locking armrest upgrade available [Z710]

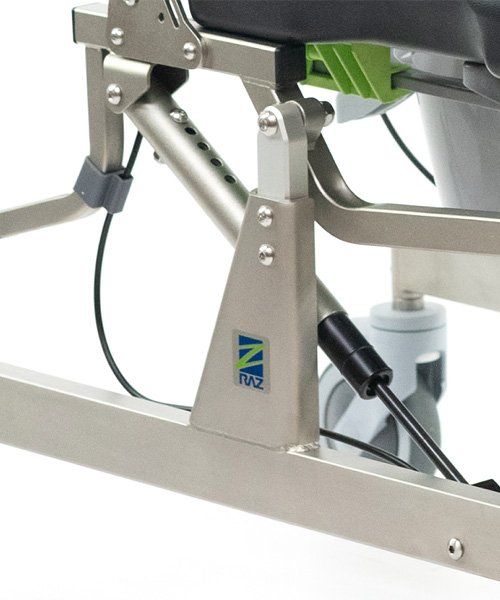

Adjustable Pivot Posts
- provides 4” of seat height adjustment without frame / toilet bowl interference

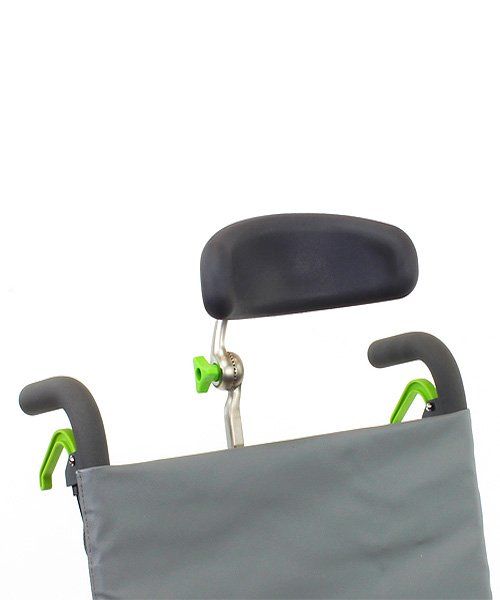

Headrest (small, standard)
- headrest size is approximately 10” W x 4” H
- integral skin foam headrest is easy to clean
- headrest is shaped to cradle the head and can be adjusted to fit looser or tighter
- headrest support can be adjusted infinitely forward and backwards within a 5½” range, and vertically within a 11½” range
- headrest angle can be adjusted for comfort
- headrest – small and mounting fixture are included with Raz-AT (Z300) and Raz-AT600 (Z360) chairs and optional on all other Raz models
Commode Pan
- Injection-molded pan is designed for function
- Includes a lid for splash and odor control
- Wide handle angled at 45 degrees provides better ergonomics
- Sloped front of pan moves contents toward the handle to reduce offset load, thereby making it easier to carry
- Receiver brackets under seat are visible from the rear of the chair, making it easier to slide the pan into place
- Fits in a standard autoclave and Arjo Tornado Washer

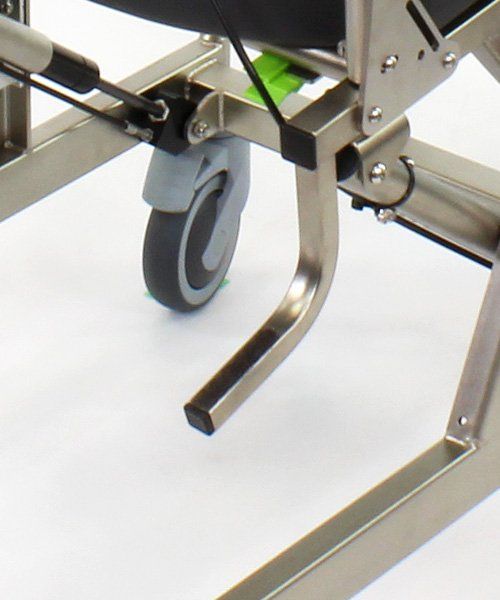

Tilt Assist Pedal
- Helps attendant initiate tilt for heavier users or users with a forward weight distribution
- enables attendant to use additional strength from legs to tilt larger/heavier users
- solid stainless steel construction fits directly into chair frame
- anti-slip tread on pedal
