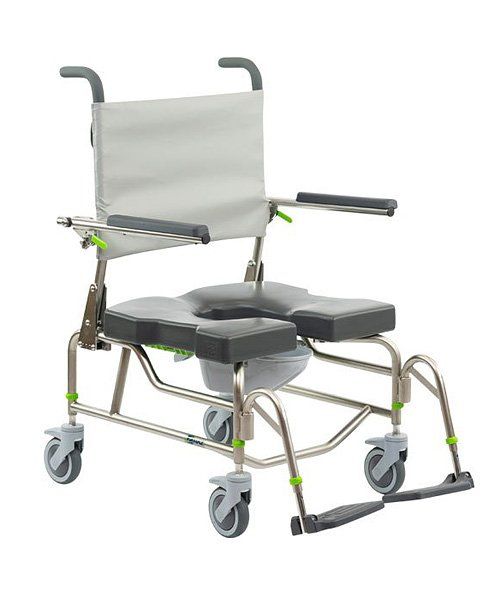

RAZ-AP600
Mobile Shower Commode Chair
RAZ Mobile Shower Commode Chairs — Designed and manufactured to the highest standards of the discerning healthcare professional.
The RAZ-AP600 mobile shower commode chair features the Multi-Position Back (with center of gravity adjustment) and comes standard with 4” of height adjustment, an adjustable-tension fabric backrest, 5” dual-locking casters for users up to 400 lbs and 6″ dual-locking casters for users over 400 lbs (up to 600lbs. Maximum), flip-up padded armrests, a commode pan, and a large molded soft foam seat. The electro-polished stainless steel frame is engineered for heavy-duty use and easy access for the user or attendant.
Only Raz offers the Ischial & Pelvic Alignment System (IPAS), which provides 2” of seat depth adjustment to accommodate a variety of body sizes and shapes. With a 600 lb. weight capacity and the many adjustments and options available, the
RAZ-AP600 will provide maximum comfort and maneuverability for users who require an attendant propelled heavy-duty shower commode chair.
RAZ-AP600 Standard Features
Moulded Seat
- contoured for pressure reduction and pelvic stability
- soft integral-skin foam for comfort and durability
- available with open or bridged front
- available sizes: 18″Wx16″D, 18″Wx19″D
Ischial Pelvic Alignment System
- provides 2” of fore/aft adjustment so the seat can be aligned with the pelvis
- allows centering of the aperture (opening) around the users’ ITs
- seat locks in place for transfers
- removes easily for cleaning
- optional spacers for anterior or posterior seat angle adjustment [Z491]
Adjustable Footrests
- removable for transfers and cleaning
- swing in and out easily
- flip-up footplate
- adjust for leg length without tools
- available in regular length 16″-20½” and extended length 18″-22½”
Tension-Adjustable Back Support Fabric
- vinyl-coated fabric for durability, comfort and better infection control
- provides individualized trunk support for optimal positioning and comfort
- removable for machine washing
- 20” back heights
Telescoping Caster Extensions
- provide 4” of seat height adjustment without the use of tools
- dropped front frame tube improves access over standard toilet bowls
- solid stainless steel caster extensions for heavy-duty use
Commode Pan
- Injection-molded pan is designed for function
- Includes a lid for splash and odor control
- Wide handle angled at 45 degrees provides better ergonomics
- Sloped front of pan moves contents toward the handle to reduce offset load, thereby making it easier to carry
- Receiver brackets under seat are visible from the rear of the chair, making it easier to slide the pan into place
- Fits in a standard autoclave and Arjo Tornado Washer
