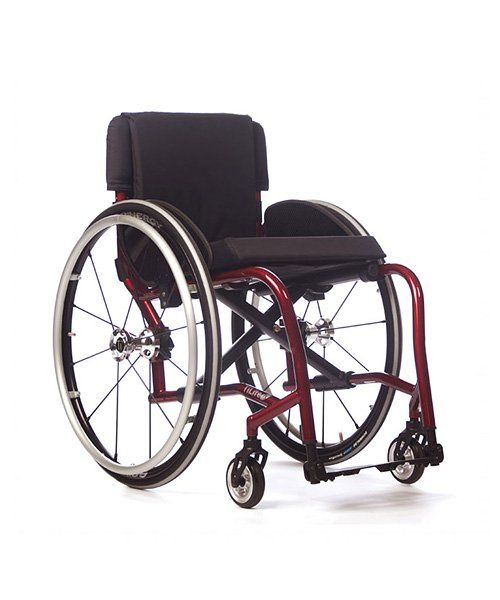

TiLite TX

Extraordinary. Nobody does with a folding chair what TiLite has done with the TX. The TiFit, titanium, dual-tube frame with fixed side frame construction means fewer parts, lighter weight, and stunning performance.


Dual-Tube Frame. Imagine fewer strokes throughout the day and less wasted energy as you push. Then introduce your imagination to the superior rigidity and optimal energy transfer of the dual-tube frame of the TX. Want more? It folds.


Snap-In Seat Saddles lock the cross tubes in place on TiLite’s rigid folding mechanism. This feature helps the TX achieve rigid chair performance.

The TX utilizes Machined Plugs to create rear wheel camber. In contrast to using washers to create rear wheel camber, the use of machined camber plugs precisely aligns the TX’s rear wheels, allowing the chair to consistently track straight.



TiShaft Back Release Bar makes folding and unfolding the backrest easy from any angle.

REQUEST PRODUCT INFO

TiLite TX Owners Manual

TiLite Colors

TiLite Warranty

Features

Folding Frame Design

The TX folding frame is compact, with a fluid, easy-to-use folding mechanism. Side-to-side folding minimizes the folding width and maximizes ease of transportation. These features are “must have” advantages for anyone who chooses a folding chair. The TX is the only folding chair on the market that is a made-to-measure wheeled prosthetic.


TiFit. Personal Ergonomics

The difference between a TiFit chair and all other chairs is that a TiFit chair is a wheeled prosthetic: Every frame is made to measure. The optimized fit of a TiFit chair brings unparalleled performance and function. You will feel the difference in everything you do.


One-Piece Side Frames

TiLite builds the TX with one-piece side frames. We also build our rigid chairs with one-piece side frames. Unlike two- or three-piece side frames that are bolted together, one-piece side frames reduce flex, increase durability, and maximize energy transfer as you push.


The Titanium Advantage

Titanium absorbs vibration, won’t break, and has the highest strength-to-weight ratio of any metal on Earth. That is why TiLite builds our highest performing wheelchairs from seamless, aerospace-grade titanium. If you want strength, durability, and a smooth roll, you want a titanium ride.

Specifications

Frame Type*: Folding

Frame Style*: Dual-Tube

Frame Material*: Titanium

TiFit*: YES

Adjustability*: Full Adjustability

Growable*: N/A

Custom Configuration*: YES

Frame Options: Fixed Front End

Transport Weight**: 12.3 lbs.

Seat Width: 12” – 20”

Seat Depth: 14” – 20”

Front Seat Height: 15” – 21”

Rear Seat Height: 14” – 19”

Camber: 0°, 2° or 4°

Front Frame Angle: 70°, 80° or 85°

Footrest Width Options: Standard Taper

Seat Back Type:

  • Folding Seat Back
  • Adj. Height 13” – 22”
  • Adj. Angle 80° – 100° Fixed Seat Back
  • Adj. Height 12″ – 20.5″
  • Fixed Angle 80° – 100°

Center of Gravity Adjustment: Fixed or 3″

Weight Limit: 250 lbs.

Transit Options: N/A

Warranty:

  • Lifetime on Frame
  • One Year on TiLite Components

**Weight based on 16” x 16” wheelchair with all standard features except rear wheels. Rear wheels are not included due to the varying weights of the numerous wheel configurations offered by TiLite. For reference, a pair of standard 24” (540) rear wheels weighs 7.2 lbs.
