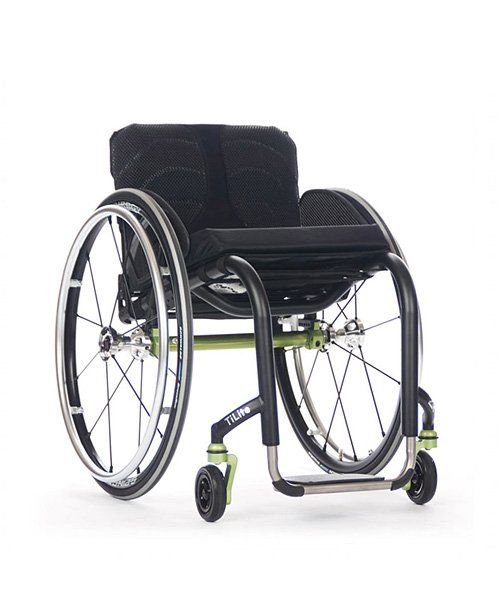

TiLite Aero ZR

With the ZR’s minimalist mono-tube frame, less truly is more. The clean aesthetic of the ZR turns heads while the titanium frame makes sure you have the strength and vibration-dampening ride to go with your beauty. Style and strength to take on whatever life throws at you.


The ZR’s sleek Mono-Tube Frame, with 1.25″ tubing, is 20% lighter than its predecessor but retains titanium’s 44% strength advantage over 7000 series aluminum.


Swept Caster Arm with bullet caster housing reduces weight and adds yet more style.


Zero Play Camber Plugs give a much tighter feel to the chair like sport suspension in a car. CNC machined from billet aluminum to the highest tolerances, they remove any side to side movement from the rear wheels.


TiShaft Back Release Bar makes folding and unfolding the backrest easy from any angle.

REQUEST PRODUCT INFO

TiLite Aero ZR Owners Manual

TiLite Colors

TiLite Aero ZR Warranty

Features

The Mono-Tube Edge

Distinguished by a clean, modern look, the mono-tube frame’s 1.25″ tubing gives the ZR strength and durability. The frame shape affords excellent transportability and easy placement on a car seat. Round off the ZR’s frame with curved, ovalized caster arms.


TiFit. Personal Ergonomics

The difference between a TiFit chair and all other chairs is that a TiFit chair is a wheeled prosthetic: Every frame is made to measure. The optimized fit of a TiFit chair brings unparalleled performance and function. You will feel the difference in everything you do.


The Titanium Advantage

Titanium absorbs vibration, won’t break, and has the highest strength-to-weight ratio of any metal on Earth. That is why TiLite builds our highest performing wheelchairs from seamless, aerospace-grade titanium. If you want strength, durability, and a smooth roll, you want a titanium ride.

Specifications

Frame Type*: Rigid

Frame Style*: Mono-Tube

Frame Material*: Titanium

TiFit*: YES

Adjustability*: Full Adjustability

Growable*: N/A

Custom Configuration*: YES

Frame Options:

  • ZR Black Edition
  • SuperLite Edition
  • Power Adaptable Frame
  • Reinforced Frame
  • Heavy Duty Edition

Transport Weight**: 9.3 lbs.

Seat Width: 10” – 20”

Seat Depth: 10” – 20”

Front Seat Height: 16” – 21”

Rear Seat Height: 12.5” – 20”

Camber: 0°, 2°, 4°, 6°, 8°, 12°, 15° or 18°

Front Frame Angle: 70°, 75°, 80°, 85° or 90°

Footrest Width Options:

  • Standard Taper
  • V-Front End

Seat Back Type: Folding Seat Back

Adj. Height: 8.5” – 21”

Adj. Angle 80° – 101°Fixed Seat Back

Fixed Height: 8” – 20”

Fixed Angle: 80° – 101°

Center of Gravity Adjustment: 2.25”

Weight Limit: Standard – 265 lbs.

  • Heavy Duty Edition – 300 lbs.

Transit Options: Transport Bracket

Warranty:

  • Lifetime on Frame
  • One Year on TiLite Components

**Weight based on 16” x 16” wheelchair with all standard features except rear wheels. Rear wheels are not included due to the varying weights of the numerous wheel configurations offered by TiLite. For reference, a pair of standard 24” (540) rear wheels weighs 7.2 lbs.
