Rifton E-Pacer Gait Trainer

Versatile and powerful.



The E-Pacer is the largest member of the Pacer family. Its sit-to-stand lift functionality removes a major barrier to gait training with large or highly dependent clients.


The E-Pacer combines the powerful electric lift column and secure body support of the TRAM with the key gait training features of the classic Pacer. The result is more than the sum of its parts. The E-Pacer can be a life-changing solution for clients who have grown too large or too dependent to be safely transferred into manual gait trainers. Its strong and stable frame can accommodate users up to 6' 5" and 350 lb.

REQUEST PRODUCT INFO

E-Pacer Brochure

Effortless lifting

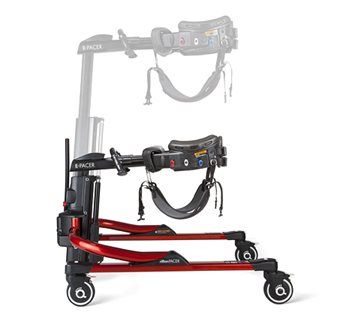

The carefully engineered, telescoping lift column gives the E-Pacer an amazing range of adjustment. It can be raised high enough to support a 6'5" walking client and then retract down to 32Âľ" for compact storage.

The switch pole accessory allows a caregiver or client to operate the electric lift without bending down.

In the absence of the switch pole or caregiver handle, the lift is operated with up/down buttons on the battery case.

The ultimate in gait trainer casters

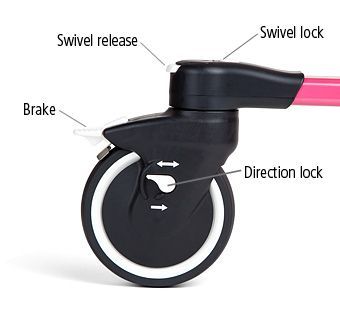

The innovative casters have swivel lock, brake, variable drag, and directional lock functionality. Use different combinations to control the E-Pacer’s speed and direction.


Swivel lock: Each caster’s swivel can be locked independently. Lock all four to help clients walk in a straight line, or just the two rear casters to eliminate drifting sideways. Release swivel locks on all casters for movement in any direction.


Directional lock: Set each caster to prevent involuntary backward movement. (Only works with swivel locks engaged.)

The Pacer casters’ five functions let you fine tune the Pacer’s movement as your clients gain control.


Variable drag: Made with the same material used in automotive brakes, our variable drag feature gives you greater control with the simple twist of a dial.

Utility base front caster

Utility base rear wheel


Foot-operated brakes make it easy to lock the wheels for transfer.

Odometer

No more counting tiles! Now available on every Pacer base as an option, Rifton’s new odometer makes it easy to record client progress in any setting, in either feet or meters.

A close-up view of the front caster with optional odometer.

The odometer looks simple, but has a lot of functions.


To reset display to 0, press the reset button. To display total lifetime distance traveled, press and hold button for 1 second. Lifetime distance will be displayed in kilometers or thousands of feet, depending on unit setting. To switch between feet or meters, press and hold button until units change (approximately 10 seconds).

Scale

No more counting tiles! Now available on every Pacer base as an option, Rifton’s new odometer makes it easy to record client progress in any setting, in either feet or meters.

A close-up view of the front caster with optional odometer.

The odometer looks simple, but has a lot of functions.


To reset display to 0, press the reset button. To display total lifetime distance traveled, press and hold button for 1 second. Lifetime distance will be displayed in kilometers or thousands of feet, depending on unit setting. To switch between feet or meters, press and hold button until units change (approximately 10 seconds).

Expanding legs

No more counting tiles! Now available on every Pacer base as an option, Rifton’s new odometer makes it easy to record client progress in any setting, in either feet or meters.

A close-up view of the front caster with optional odometer.

The odometer looks simple, but has a lot of functions.


To reset display to 0, press the reset button. To display total lifetime distance traveled, press and hold button for 1 second. Lifetime distance will be displayed in kilometers or thousands of feet, depending on unit setting. To switch between feet or meters, press and hold button until units change (approximately 10 seconds).

The Benefits:

  • Zero-lift transfers: The E-Pacer can perform the sit-to-stand transfer that is part of every gait training session with no lifting on the part of the caregiver.
  • Gait training with extra stability: The E-Pacer’s strong and rigid frame gives security for heavier or taller clients.
  • Seat-to-seat transfers: Attach the thigh straps to the E-Pacer’s body support system and use the E-Pacer to move a client from a wheelchair to a mat table or other surface for therapy.
  • Expandable legs: Widen the base legs for clients needing extra step width or to get up close to a wheelchair prior to a transfer.
  • Height range: The 26" adjustment range of the E-Pacer’s electric lift column provides great versatility for use with clients of different statures.

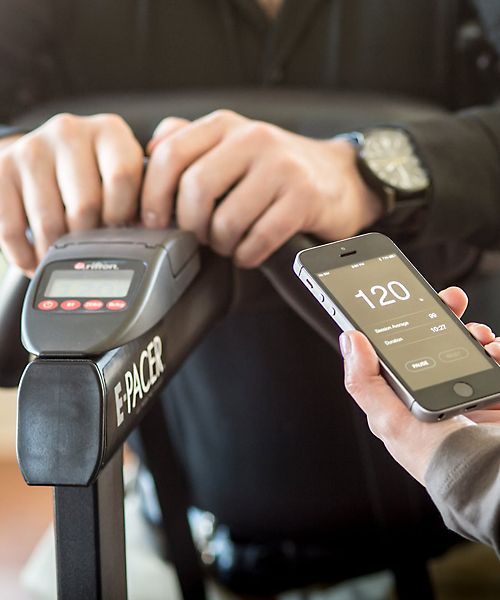

  • Built-in scale: the optional Bluetooth-equipped scale and Gait Tracker mobile app measure the load on the body support, allowing caregivers to track a client’s weight-bearing progress over time. Available for Android or iOS devices.

Floor to top of arm prompt: 24” – 35”


Overall width

Standard base: 26”

Utility base: 30”

Narrow treadmill/stability base: 35”

Wide treadmill/stability base: 40”


Overall length

Standard base: 30”

Utility base: 36”

Treadmill/stability bases: 41”


Frame height

Standard & utility bases: 21.5”-27”

Treadmill/stability bases: 23.5”-36.5”


Base height (without upper frame)

Standard & utility bases: 14.5”

Treadmill/stability bases: 21”-28.5”


Frame weight (lbs)

Standard base: 15”

Utility base: 18.5”

Narrow treadmill/stability base: 27.5”

Wide treadmill/stability base: 28”

Standard upper: 7.5”

Dynamic upper: 11.5”


Dynamic upper movement

Vertical: 3”

Horizontal: 2”


Maximum treadmill width

Narrow treadmill/stability base: 29”

Wide treadmill/stability base: 34”


Maximum treadmill height

Treadmill/stability bases: 11”


Maximum working load (lbs): 150


Floor to top of arm prompt: 32” – 47”


Overall width

Standard base: 28”

Utility base: 32”

Narrow treadmill/stability base: 35”

Wide treadmill/stability base: 40”


Overall length

Standard base: 36”

Utility base: 40.5”

Treadmill/stability bases: 41”


Frame height

Standard & utility bases: 28.5”-38.5”

Treadmill/stability bases: 30”-47”


Base height (without upper frame)

Standard & utility bases: 16”

Treadmill/stability bases: 21”-28.5”


Frame weight (lbs)

Standard base: 15.5”

Utility base: 19.25”

Narrow treadmill/stability base: 27.5”

Wide treadmill/stability base: 28”

Standard upper: 9.5”

Dynamic upper: 13.5”


Dynamic upper movement

Vertical: 3”

Horizontal: 2”


Maximum treadmill width

Narrow treadmill/stability base: 29”

Wide treadmill/stability base: 34”


Maximum treadmill height

Treadmill/stability bases: 11”


Maximum working load (lbs): 200
