Edge 3

Get the Edge® 3 with iLevel!


The design of the Edge® 3 is for the most advanced power chair experience ever! Upgraded SRS (Smooth Ride Suspension) provides a smooth, comfortable ride and advanced stability. Optional iLevel® is available at 4.5 mph with up to 12" of power adjustable seat height. Standard features include front and rear LED fender lights, a USB charger, and drive wheel color accents. The Edge® 3 is available in a total of 17 color options.

REQUEST PRODUCT INFO

Edge 3 Brochure

Quantum Catalog

Owner's manual

Features

  • Upgraded SRS (Smooth Ride Suspension)
  • Up to 7 mph with new optional 4-pole motors 9
  • Up to 4.5 mph with iLevel®
  • Fender lights and USB charger included
  • Made in America of foreign and domestic parts
  • Available with optional WC19 crash-test approved
  • occupied transit kit
  • Available with optional Accu-Trac Advanced
  • Tracking Technology

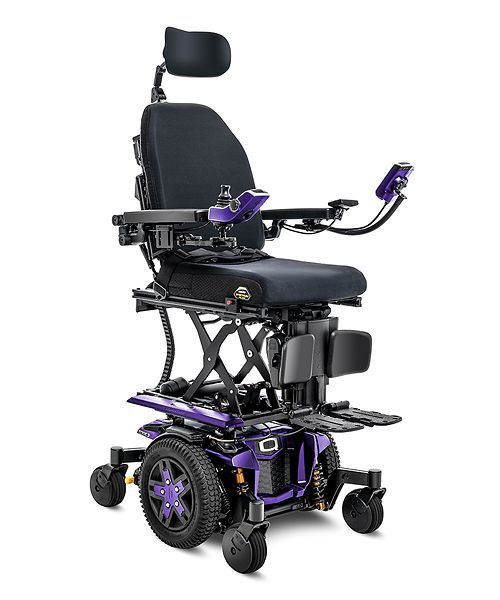

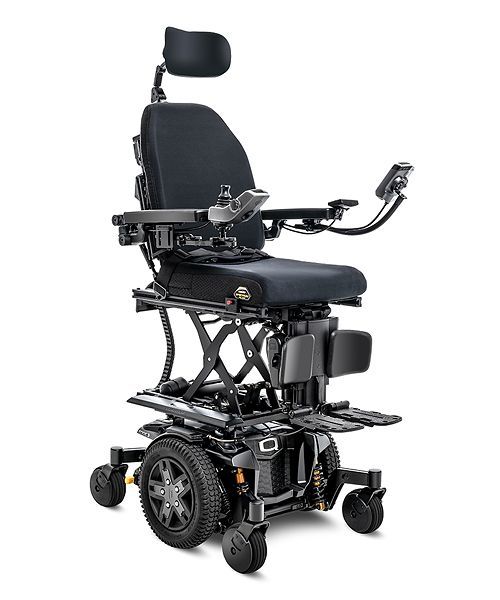

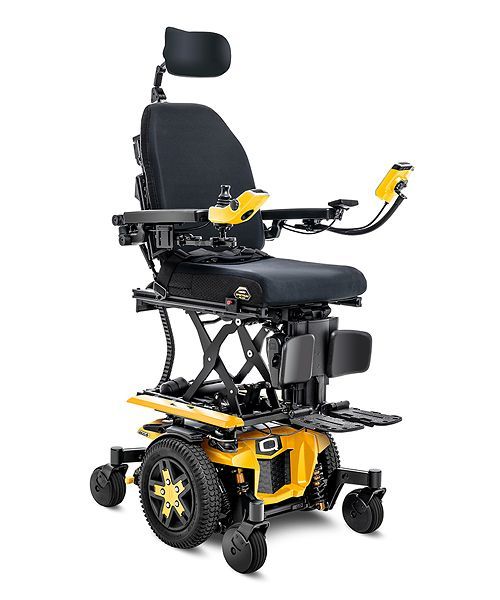

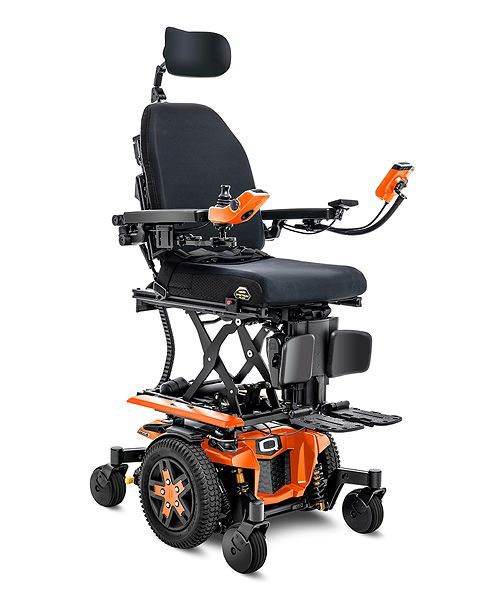

Colors

iLevel®

Power Chairs


Can your wheelchair do this? Watch the video!


About iLevel® Power Chairs

iLevel® Power Chairs feature a revolutionary new power chair design for a better experience.


iLevel improves daily functionality and quality of life by allowing operation of the power chair with the seat fully elevated while at walking speed (at 4.5 mph).


iLevel's patented Extra Stability Technology® enhances safety for transfers, reach, and numerous other activities of daily living.

Edge® 3 Compatible Seating

  • TRU Balance® 4 Power Positioning Systems

    TRU Balance® 4 Power Positioning Systems is now available with more power seat configurations and provides a choice of 10, 20, or 30 degrees of power anterior tilt. Other features include up to eight customizable memory seating positions and an articulating foot platform that lowers to assist with transfers. TRU Balance 4 is available on the Edge 3 Stretto®, Edge® 3, and 4Front® 2 power chairs.

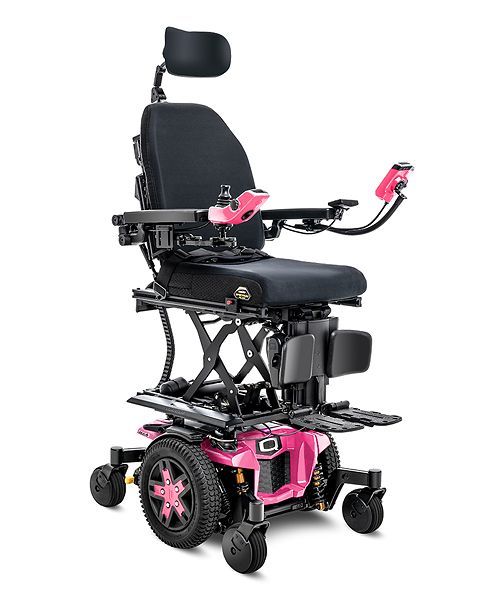

  • Power Adjustable Seat Lift with iLevel®

    iLevel improves access to one's environment and enhances social interaction by allowing operation of the power chair with the seat fully elevated while at walking speed (at 4.5 mph).

  • TRU-Balance® 3 Power Positioning Systems

    TRU-Balance® 3 Power Positioning Systems feature an innovative design that maximizes functional independence while providing an appealing look and feel. TRU-Balance 3 has the ability for quick and easy fine-tuning adjustments to ensure maximum comfort and positioning. Optional 12" iLevel® power adjustable seat height is available.

  • TRU-Balance® Flex Seating

    TRU-Balance® Flex Seating is the no-charge static seat option available on the Edge® 3, Q6 Edge® 2.0, and the Rival® power chairs.

  • Captain Seating

    Captain Seating is a standard option on Quantum Rehab® power chairs and features a black vinyl height-adjustable seat back, with options including a solid seat pan, a removable standard seat cushion, limited recline, and depth adjustability.

How can iLevel® Power Chairs benefit me?


iLevel® Power Wheelchairs feature a revolutionary new power chair design for a better experience. iLevel from Quantum® improves daily functionality and quality of life by allowing operation of the power chair with the seat fully elevated while at speeds at 4.5 mph.


The world is not designed around seated height, and unfortunately wheelchair users for too long have been excluded from many everyday functional tasks and interactions beyond their physical reach. iLevel is a feature that can dramatically increase the quality of life for power chair users. From in the home to out in the community, a power elevating seat can help make life safer for users, make social interactions more fulfilling, and give people who use motorized wheelchairs access to common areas of their home.


iLevel's patented Extra Stability Technology® enhances safety for transfers, reach, and numerous other activities of daily living. iLevel elevating seat technology is unique in that it’s user-inspired, where not only does it elevate, but it stabilizes the power chair for safe operation at at 4.5 mph. For users, this means being able to grocery shop while elevated; this means navigating crowds at eye level; this means accessing high-top tables in restaurants; and, this means strolling the walking path arm-in-arm with your partner. Of course, simply being able to adjust the seat height, with added stability, makes transfers safer.

Specifically, iLevel can benefit you if:



  • You have difficulty, or need assistance, to transfer from surfaces (beds, toilets, shower chairs, car/van seats, etc.) that are higher than the seat on motorized wheelchairs
  • You have difficulty, or need assistance, to reach high enough to access one or more of the following areas at home, school, work, or the community:
  • Dresser drawers; clothes rod, washer or dryer
  • Medicine cabinet; bathroom sink/faucet; mirror; shower head/faucet
  • Freezer/refrigerator; oven/stove (including light/exhaust fan switches); microwave, cupboards/shelves; counter; sink/faucet; disposal switch
  • Light switches; thermostat; fire alarm; wall phone; speaker; door eye hole/viewer; doorbell; elevator buttons
  • You have difficulty seeing where you are going, moving through crowds, or safely crossing the street from a low (standard) seat height in motorized wheelchairs
  • You experience neck pain, have difficulty seeing or hearing those standing nearby when seated in power wheelchairs
  • You experience any difficulty sitting in motorized wheelchairs as a result of looking up or reaching overhead

Edge® 3 Compatible Electronics

  • Q-Logic NES

    The Q-Logic NES is the latest generation of non-expandable power wheelchair electronics. It is user-friendly, customizable and offers up to 2-actuator functions

  • Q-Logic 3

    The Q-Logic 3 Advanced Drive Control System from Quantum Rehab® is like no other power wheelchair electronics system. Designed from clinician and consumer feedback, Q-Logic 3 is user-friendly and highly customizable. This adaptable, expandable control system can increase and maximize independence.

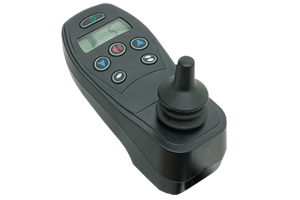

  • NE+Controller

    The NE+ is a non-expandable rehab electronic controller that offers 2-actuator control for TRU-Balance® Power Positioning Systems and a standard 1/8" auxiliary port for adaptive switches.

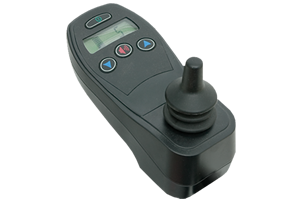

  • NE Controller

    The NE is a non-expandable rehab electronic controller that delivers simplicity without limiting features, and is for use with power chairs without power seating options.

Edge® 3 SRS Suspension


There's Only One...SRS


SRS (Smooth Ride Suspension) is a superior automotive-grade power chair suspension developed after two years of research and consumer feedback.

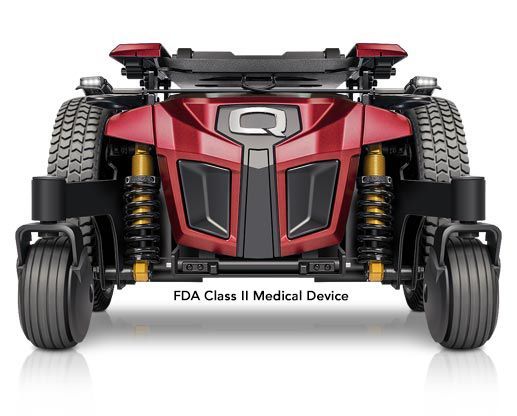

On the Edge® 3 Motorized Wheelchair, SRS consists of three coil-over, gas-charged shocks that provide an ultra-smooth and quiet ride. The geometry in which the shocks are built into the base of the power chair allows for independent caster and wheel travel.


With unprecedented comfort and ride quality, SRS delivers exceptional driving performance over multiple terrains. Additionally, SRS adds stability to optional iLevel® Power Adjustable Seat Height on the Edge® 3 Motorized Wheelchair.



When you want a smooth, comfortable ride, unmatched performance and advanced stability, there’s only one choice: SRS.

Click the link to get more information on the benefits of power wheelchair suspension.

Edge® 3 Power Base Accessories

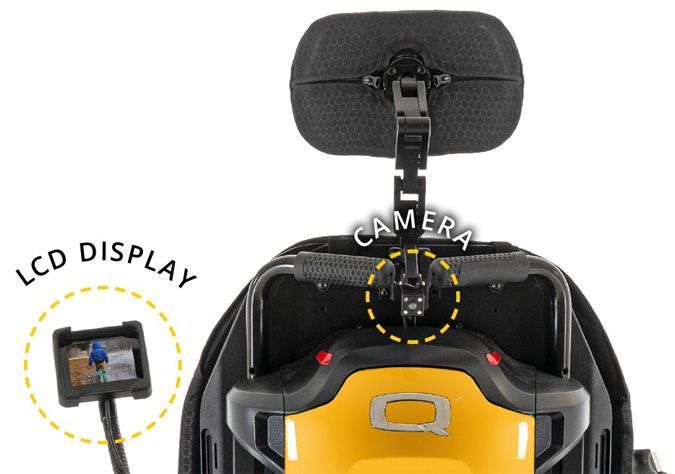

Quantum® Backup Camera

The Quantum® backup camera is one camera with many uses and promotes safety with a rear viewing angle of 170 degrees.

  • Features include:Multiple mounting options available for the camera
  • 3.5-inch display with protective case to prevent damage
  • Choose between two modes: camera on at all times or camera turns on with a reverse command
  • The display can be mounted off the armrest or side rails
  • Infrared capabilities allow for use at night
  • Available exclusively on Q-Logic 3, but will also be available on NE/NE+ in the future

LED fender lights

LED fender lights come standard on the Edge® 3 and offer great benefits and features for increased visibility. With lighting mounted to the fender, above the drive tire on each side of the power wheelchair, fender lights help ensure that you can see and be seen.

  • Slim-line fender integration for ultimate compactness and durability
  • Ultra-bright, long-life LEDs allow optimal user visibility at night
  • White front lighting and red rear tail lighting
  • Positioning of lights increases pedestrian visibility from a wide range of angles
  • Switch-operated

Drive wheel accent colors

  • Standard on the Edge® 3
  • Match your base, back, and controller shrouds or choose a different color for a unique look.
  • Available in all color options.

Standard USB charger

  • Powers electronic devices while on the go
  • Standard on the Edge® 3


Note: The TRU-Balance® 3 USB mobile device charger is different than this USB charger model. The TRU-Balance 3 version is available as an option on all TRU-Balance 3 seating systems.

Specifications

Model: Q6 Edge® 3

Drive Configuration: Mid-wheel drive

Drive Wheels

  • 14” solid
  • Optional: 14” pneumatic
  • Optional: 14” knobby

Caster Wheels:

  • Front: 6” solid
  • Rear: 6” solid

Maximum Speed4

  • Up to 7 mph17
  • Up to 4.5 mph with iLevel activated

Ground Clearance: 2.7” (battery tray)

Turning Radius5: 20.5”

Overall Length11: 32.23” without front riggings

Base Width: 24.4”

Seating Sizes

  • Synergy®/Static: W: 10-22”; D: 10-22”
  • TRU-Balance® 3 Power Tilt: W: 12-22”; D: 12-22”
  • TRU-Balance® 3 Tilt and iLevel®: W: 12-22”; D: 12-22”
  • TRU-Balance® Flex Seating: W: 15-22” D: 15-20”

Seat-to-Floor Heights16,17

  • Synergy®: 15.875-20.875”; Static: 16.5-18.5”
  • TRU-Balance® 3 Power Tilt8: 17.5-19.5”
  • TRU-Balance® 3 Tilt and iLevel®8: 17.5-19.5”
  • TRU-Balance® Flex Seating8: 16.5-18.25”

Battery Size6: NF-22 (2)

Battery Weight14: 38 lbs. each

Available Electronics12

  • 120A Q-Logic 3 EX
  • 120A Q-Logic 3e
  • 75A Q-Logic NE
  • 75A Q-Logic NE+
  • 75A Q-Logic NES
  • 90A Q-Logic NES

Battery Charger: 8A off-board

Motor Packages

  • Standard: 2-Pole, Mid-Wheel® 6
  • Optional: 4-pole, Mid-Wheel® 6

Weight Capacity7: 300 lbs.

Base Weight: 138.6 lbs.

Medicare Code Coverage

  • Group 3:
  • Standard (K0848/K0849)
  • Single Power (K0856/K0857)
  • Multiple Power (K0861)

Notes:

4 Speed varies with user weight, terrain type, battery charge, battery condition and tire pressure.

5 Without front riggings

6 Battery capacity may change when adding power positioning systems.

7 Weight capacity is dictated by the selection of seating.

8 All measurements +/- 1/8” with 18” x 18” seat, fixed towers, 300 lbs. weight capacity and solid tires (add 3/8” with pneumatic tires). Depths may increase seat-to-floor height. Contact Customer Service for details. Listed measurements are in the lowest position; does not include elevating system unless specified.

11 Without foot riggings.

12 All Quantum Rehab® units can be ordered with specialty controls

13 6.25 mph speed available only with Q-Logic 3.

14 Battery weight may vary +/- 3 lbs. based on manufacturer.

16 Seat-to-floor heights are measured with the unit unloaded.

17 7 mph can only be achieved with optional 4-pole motors and Q-Logic 3 or Q-Logic 3e. Maximum speed without 4-pole motors is 6.25 mph with Q-Logic 3.
