Suspension

With its special damping elements, the suspension

• ensures a pleasent experience when the ped. wheelchair is moving, without undue sudden movements for the child
• prevents spongy steering and provides excellent convenience when pushing the pediatric wheelchair
• helps reduce spasticity

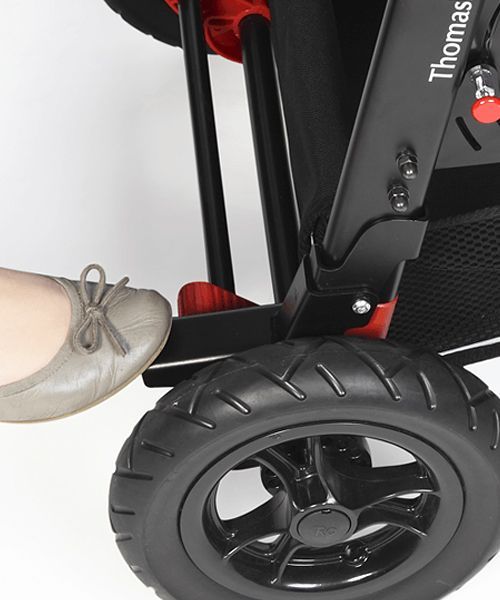

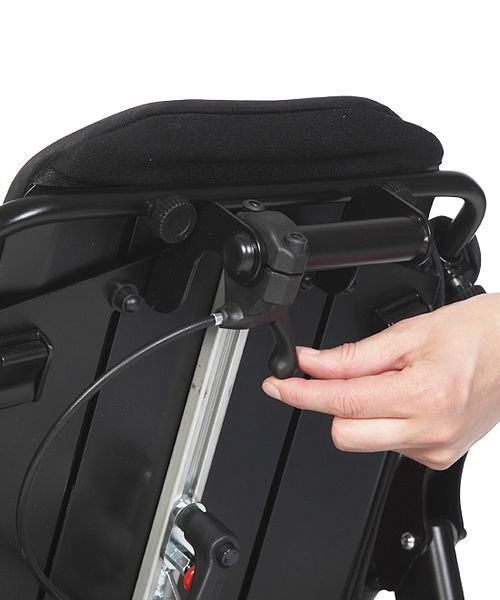

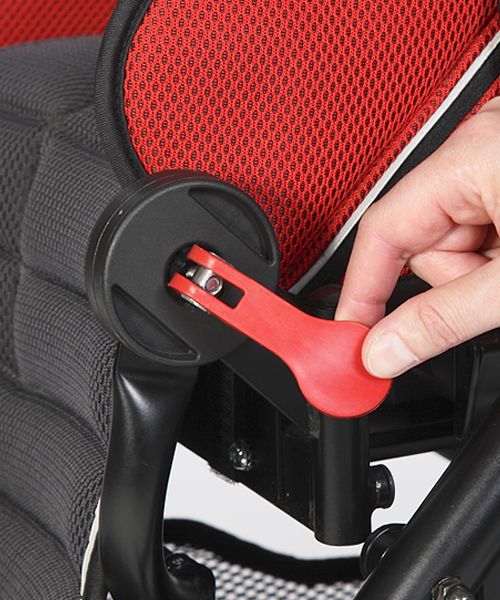

One-hand adjustment

One lever – two practical functions

• Seat tilting for a rest position or active sitting

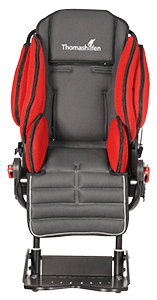

• Disconnect seat unit from chassis and turn it around: the child can look in the direction of travel or to you

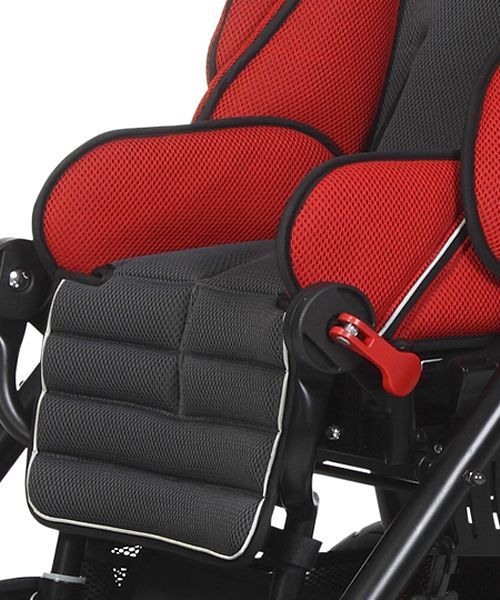

Adjustment

For individual and therapeutic adaption,

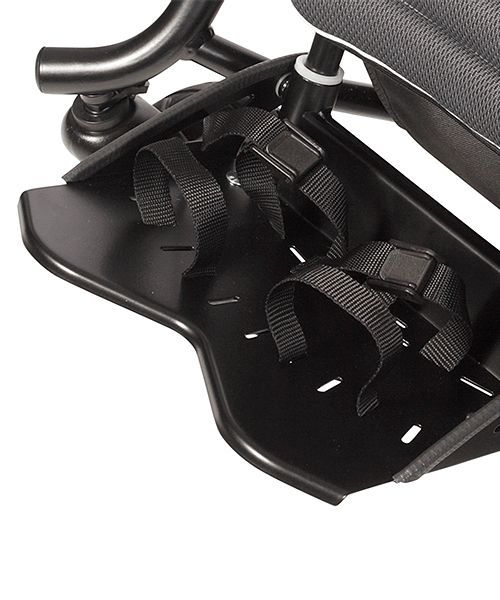

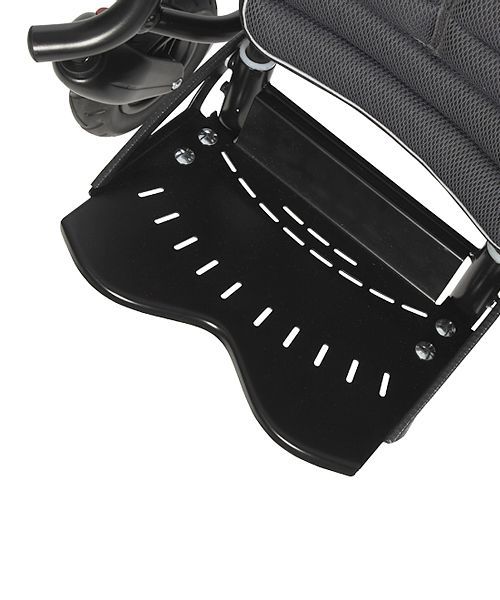

• the seat, back and footrest are adjustable

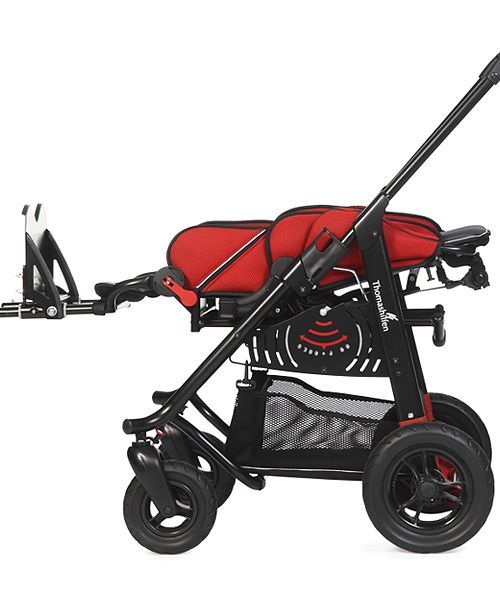

• the seat can be turned into 180° reclining surface – without danger of tipping
• physiological pivot points are located at hip/knee joints
• the back height, seat witdh and seat depth can be adjusted

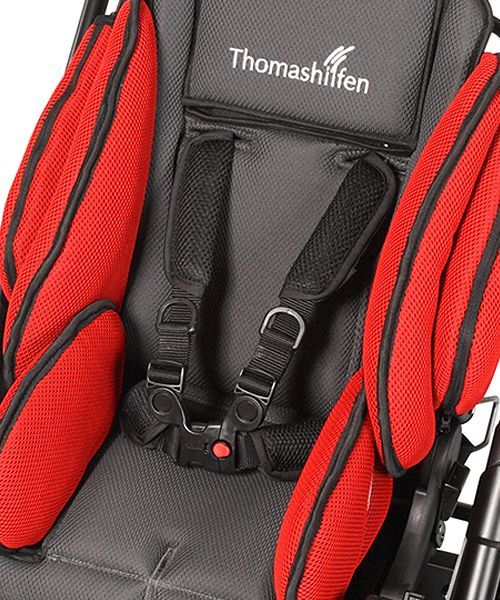

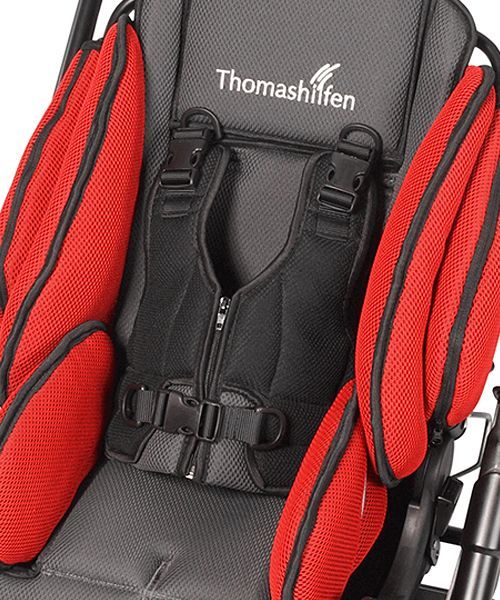

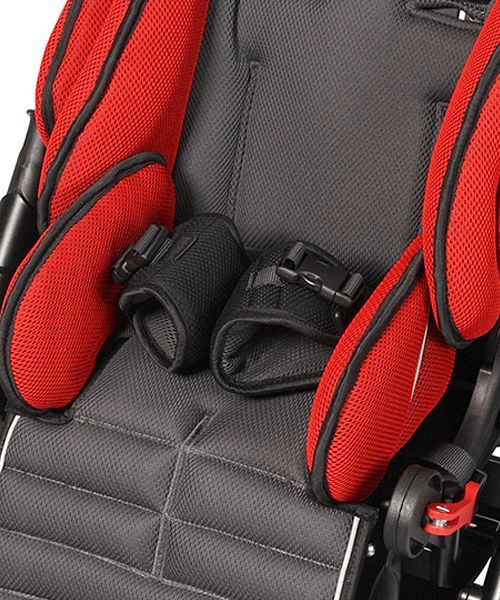

Safety

The good feeling of being safe and sound is provided by

• the unique BSS , with automatic movement of the center of gravity as protection against tipping
• the luminous reflective stripes that provide good visibility in the dark

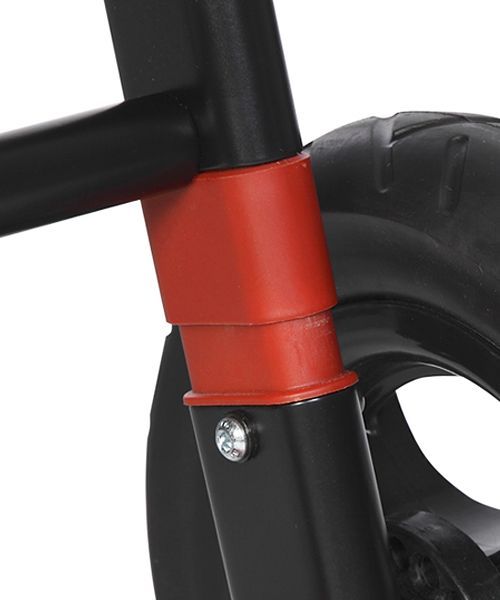

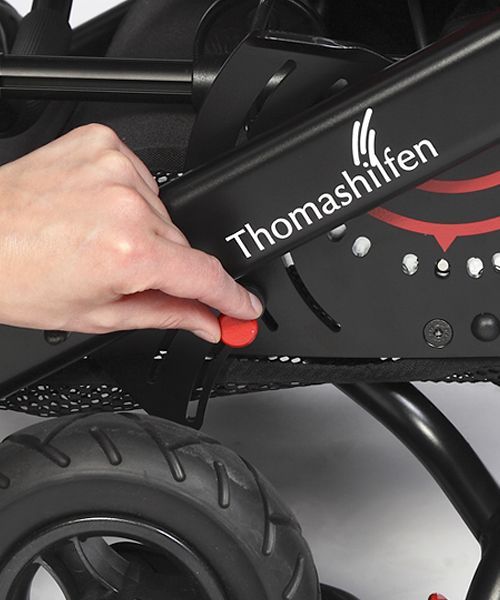

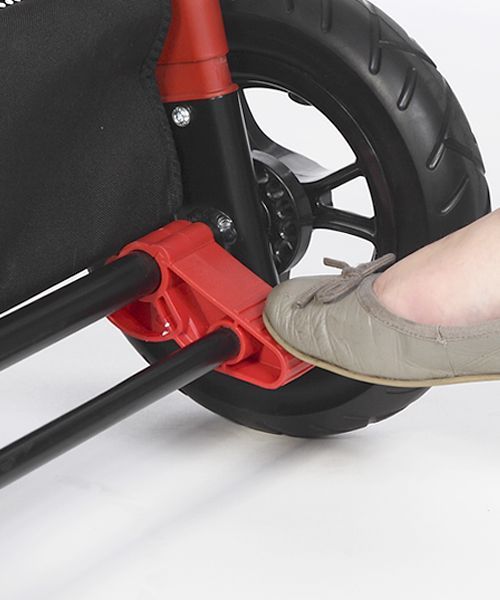

• quick and easy adjustment using the functional parts that are marked in red

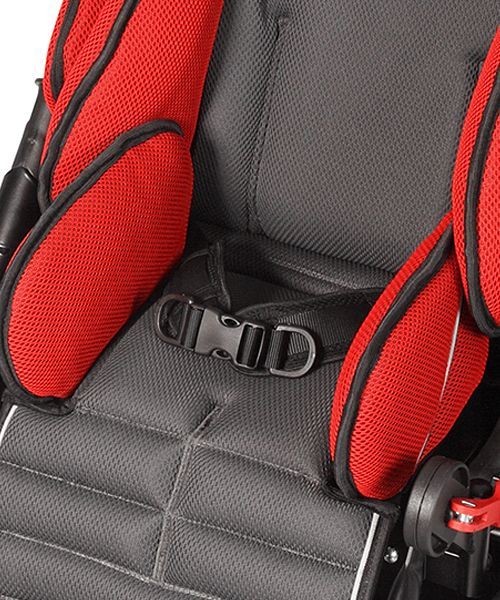

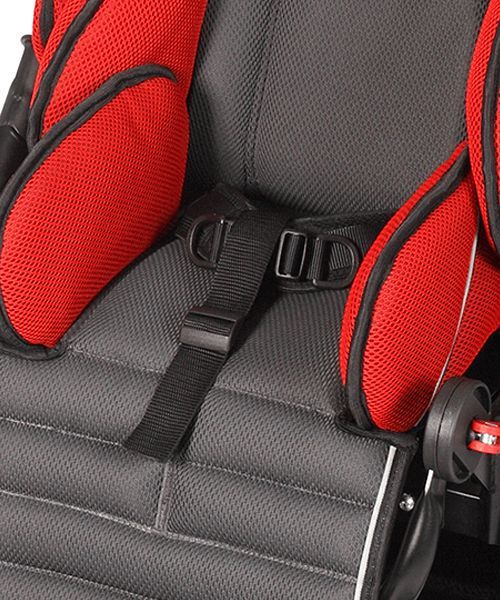

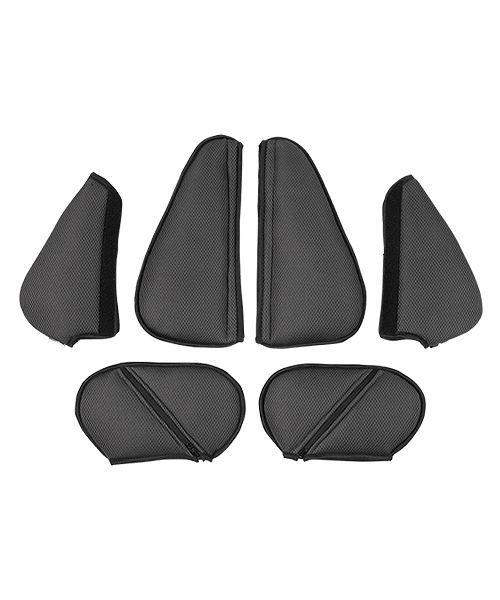

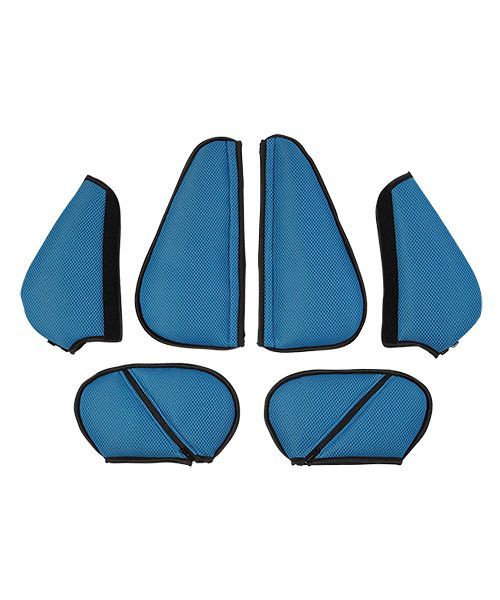

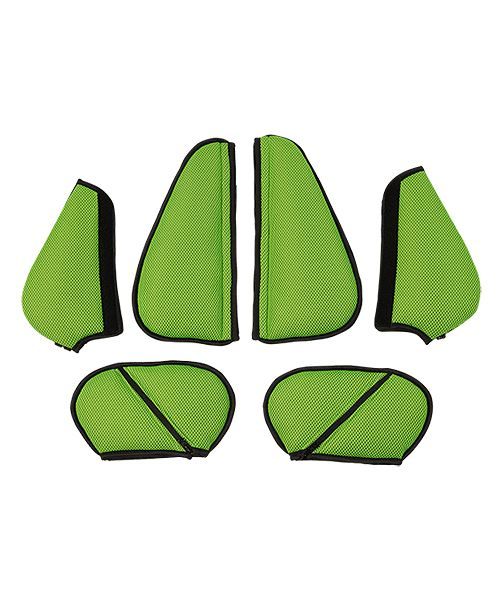

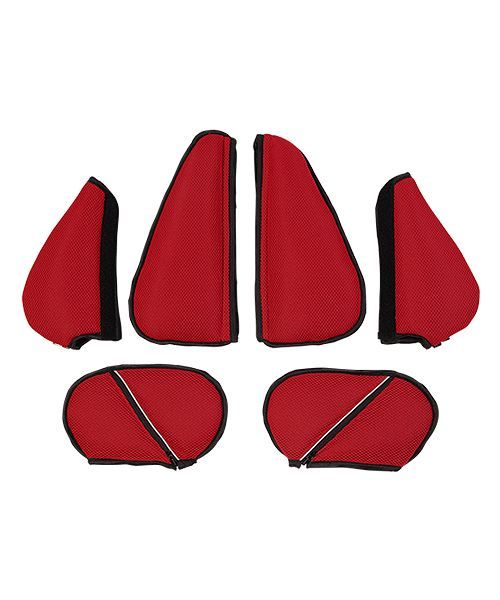

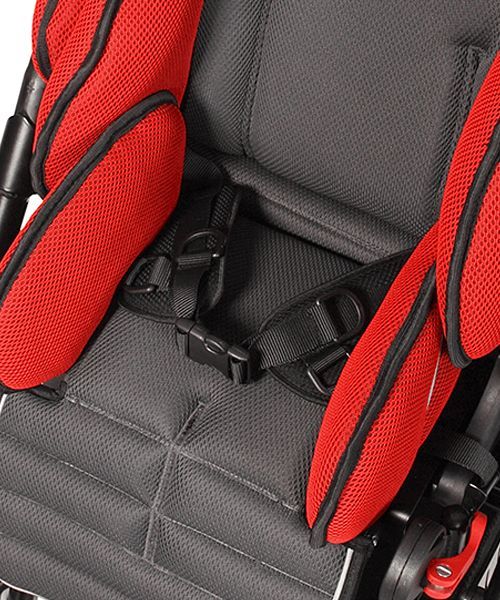

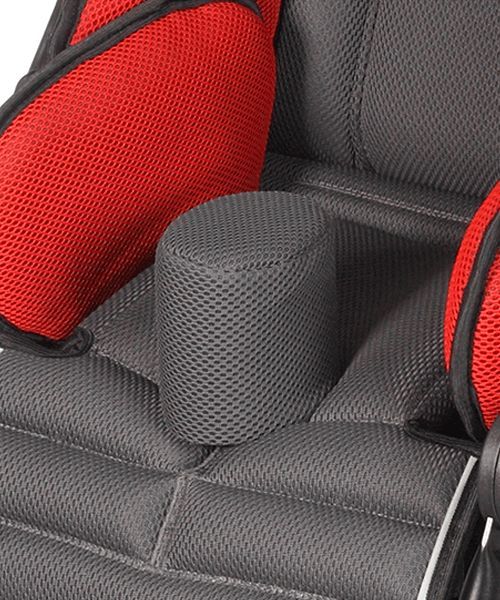

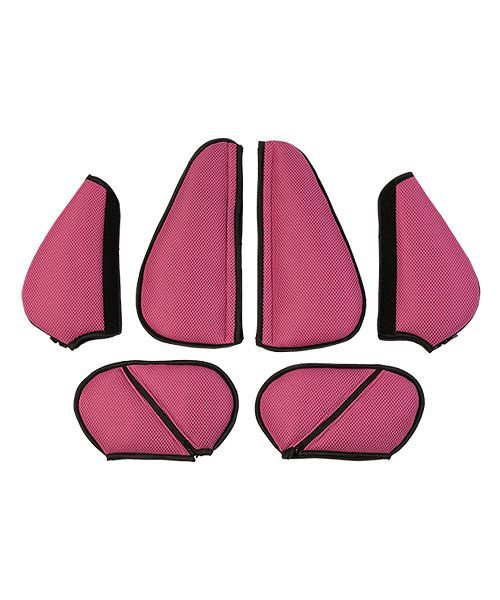

Upholstery & cover

To ensure an all-around comfortable seating position

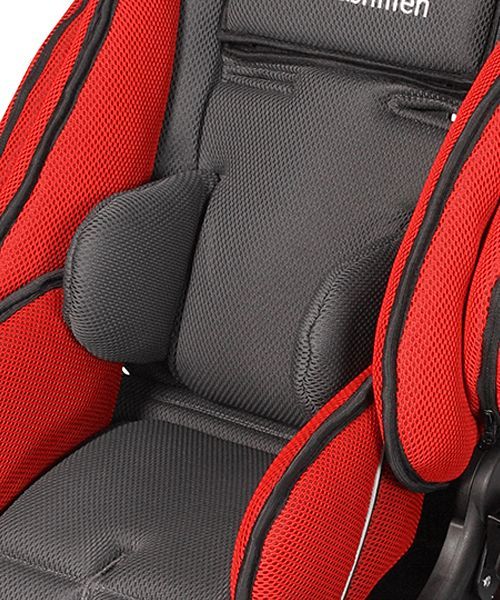

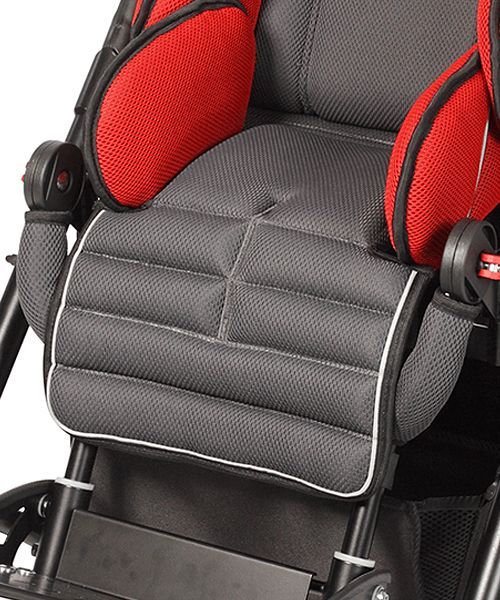

• the additional seat cushion provides extra comfort and can be exchanged as needed
• the seat cover is soft and breathable – for a high degreee of softness without the inconvenience of seating

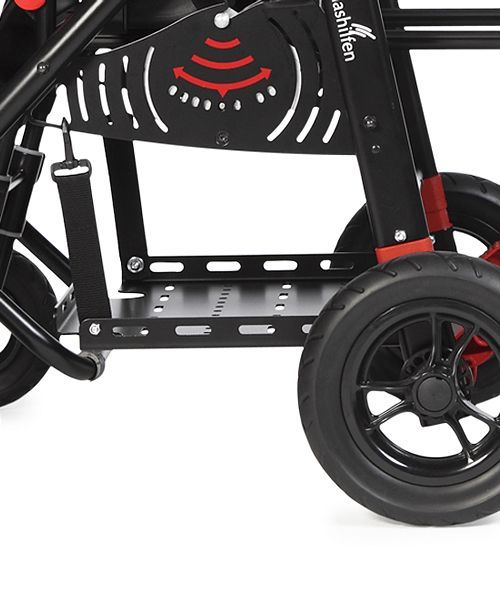

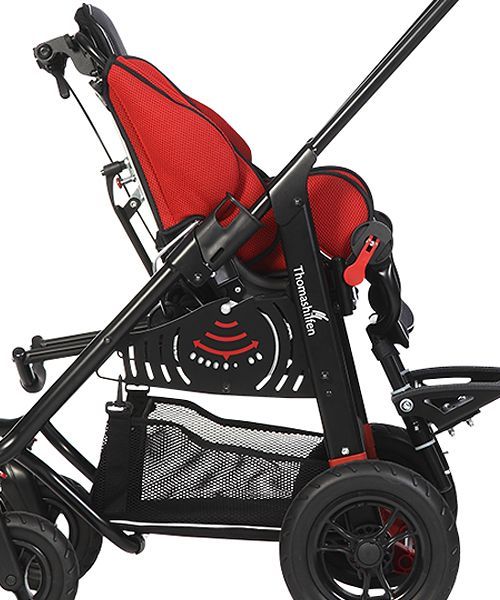

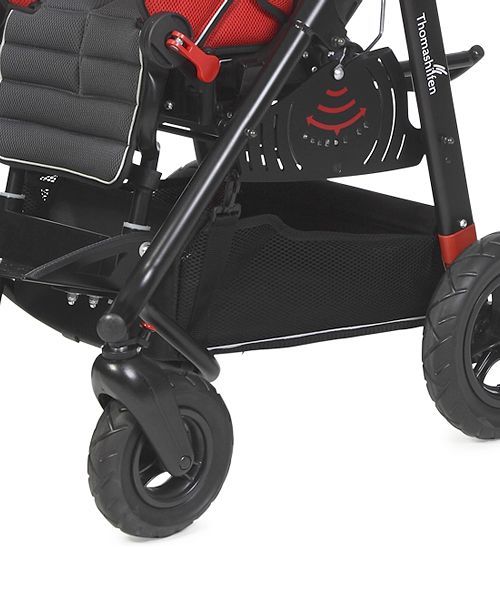

Storage space

Under the seat,

• there is plenty of space for shopping, diapers and more
• a washable basket (included) or a large tray (accessory) can be attached

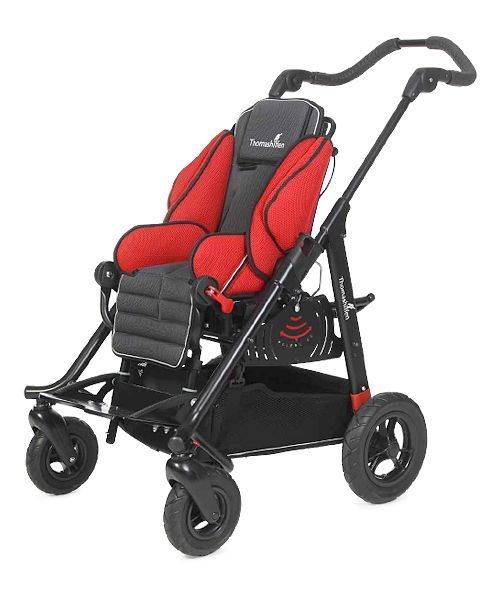

EASyS Advantage 1

Seat depth3 : 19 - 30 cm / 7.5 – 11.8”

Seat width4 : 19 - 31 cm / 7.5 – 12.2”

Seat height8 : 47 cm / 18.5”

Back height1 : 41,5 - 68 cm / 16.3 - 26.7”

Lower leg length2 : 17,5 - 29 cm / 6.9 - 11.4”

Hip angle: 90° to 180°

Knee angle: 90° to 180°

Foot angle: 78° to 100°

Turning range of seat: 180°

Size of hip guide (w x h): 23 x 12 cm / 9 x 4.7”

Size of foot rest (w x d): 28 x 18 cm / 11 x 7.1”

Weight: 9 kg / 19.5 lbs

Carrying capacity (seat): 35 kg / 77.1 lbs

Overall width5 : 59.5 cm / 23.4”

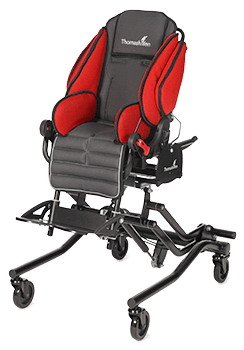

A-Chassis Advantage, size 1

Seat tilt-in-space (driving direction): -10° to +35°

Seat tilt-in-space (face to face): -10° to +35°

Push bar height6 : 71.5 - 117 cm / 28.2 - 46.1”

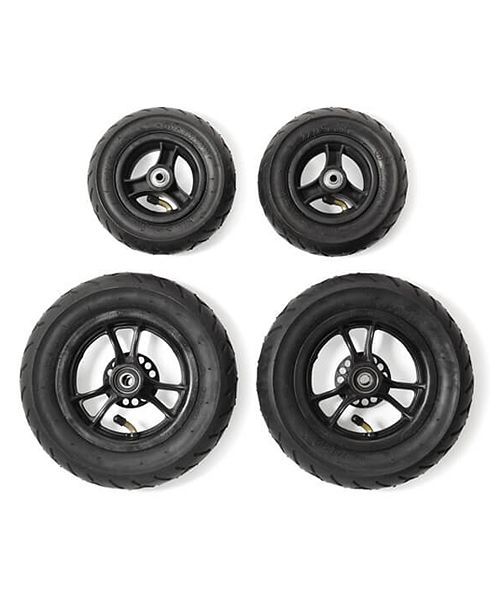

Wheel size swivel wheels (front): 18 cm / 7.1”

Wheel size (rear): 25 cm / 10”

Weight (chassis): 9.8 kg / 21.6 lbs

Carrying capacity (basket): 5 kg / 11 lbs

Carrying capacity (incl. seat): 50 kg / 110.2 lbs

EASyS Advantage 2

Seat depth3 : 27 - 38 cm / 10.6 – 15”

Seat width4 : 25 - 37 cm / 9.8 – 14.6”

Seat height8 : 46 cm / 18.1”

Back height1 : 55 - 74 cm / 21.7 - 29.1”

Lower leg length2 : 21 - 37 cm / 8.3 - 14.6”

Hip angle: 90° to 180°

Knee angle: 90° to 180°

Foot angle: 78° to 100°

Turning range of seat: 180°

Size of hip guide (w x h): 30 x 15 cm / 11.8 x 5.9”

Size of foot rest (w x d): 32 x 21 cm / 12.6 x 8.3”

Weight: 10.4 kg / 22.9 lbs

Carrying capacity (seat): 40 kg / 88.2 lbs

Overall width5 : 69 cm / 27.2

A-Chassis Advantage, size 2

Seat tilt-in-space (driving direction): -10° to +35°

Seat tilt-in-space (face to face): -10° to +35°

Push bar height6 : 71.5 - 117 cm / 28.2 - 46.1”

Wheel size swivel wheels (front): 18 cm / 7.1”

Wheel size (rear): 25 cm / 10”

Weight (chassis): 10.9 kg / 24 lbs

Carrying capacity (basket): 5 kg / 11 lbs

Carrying capacity (incl. seat): 55 kg / 121.2 lbs

1. back height 2. lower leg length 3. seat depth 4. seat width 5. overall width 6. push bar height 7. shoulder height
